Specifications

• 3.5″/2.5″ Universal drive mounts6 included, 14 positions total + 1 Multibracket
• Dedicated 2.5″ drive mounts2 included, 4 positions total
• Expansion slots7 + 2
• Front interface1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, Audio I/O, Power button, Reset button
• Total fan mounts9x 120/140 mm
• Front fan3x 120/140 mm (2x Dynamic X2 GP-14 included)
• Top fan3x 120/140 mm
• Rear fan1x 120/140 mm (1x Dynamic X2 GP-14 included)
• Bottom fan2x 120/140 mm
• Dust filtersTop, front and bottom
• Fixed velcro strapsYes
• Cable routing grommetsYes
• Captive thumbscrewsHDD, SSD and PSU brackets
• Left side panelSteel
• Right side panelSteel

Compatibility

• Motherboard compatibilityE-ATX (max 285 mm)/ ATX / mATX / Mini-ITX
• Power supply typeATX
• PSU max length250 mm (with HDD cage installed)
• GPU max lengthStorage layout: 315 mm Open layout: 491 mm (467 mm w/ front fan)
• CPU cooler max height185 mm
• Front radiatorUp to 360/280 mm
• Top radiatorUp to 360/420 mm
• Rear radiator120 mm
• Bottom radiatorUp to 240/280 mm
• Cable routing space30 mm

Dimensions

• Case dimensions (LxWxH)542 x 240 x 474 mm
• Case dimensions w/o feet/protrusions/screws541 x 240 x 454 mm
• Package dimensions (LxWxH)634 x 542 x 324 mm
• Net weightSolid: 10.1 kg TG: 10.5 kg
• Gross weightSolid: 12.8 kg TG: 13.2 kg
• Volume58.95 liters

Other

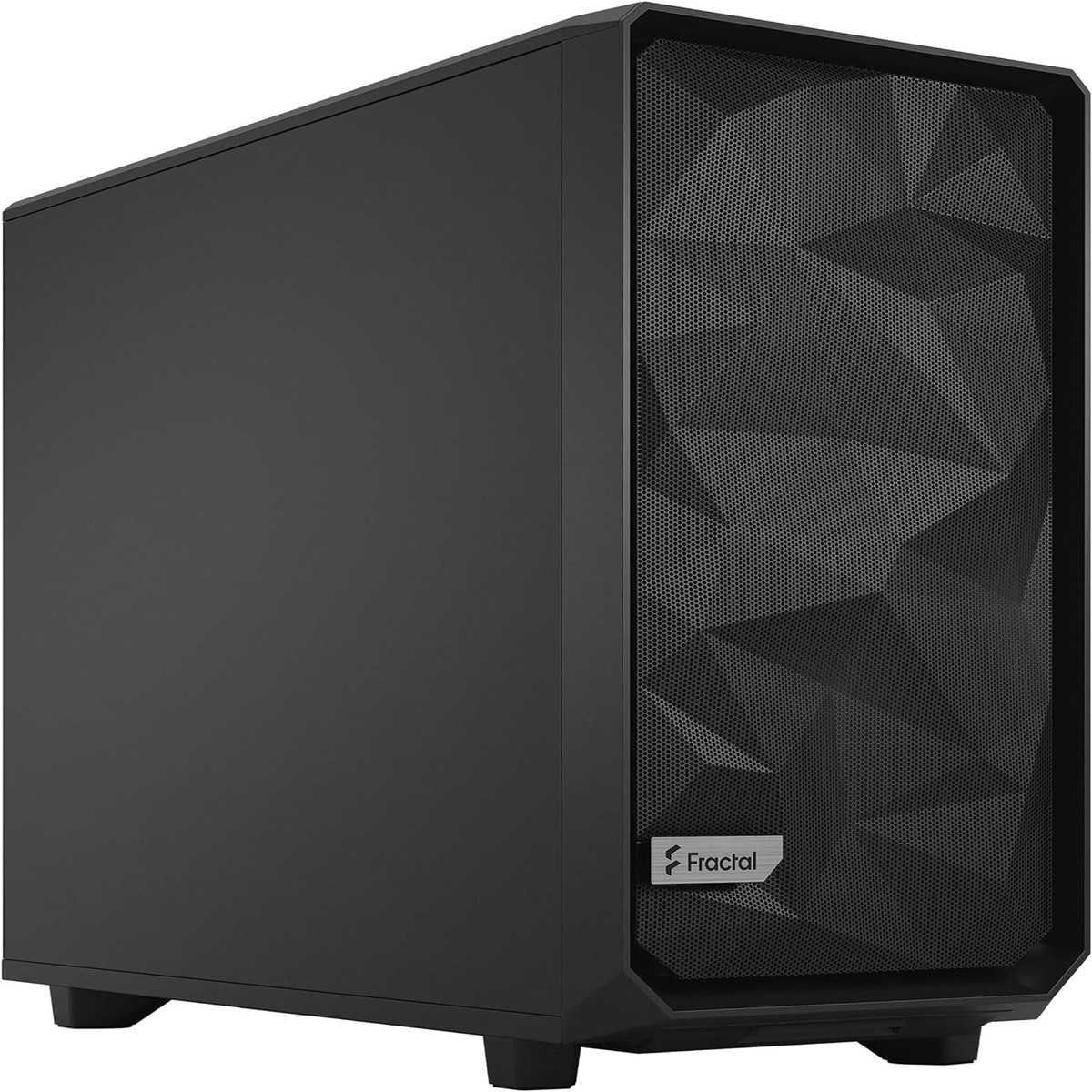

• Package contentsMeshify 2 Case, User manual, Large accessory box – HDD trays. Small accessory box
