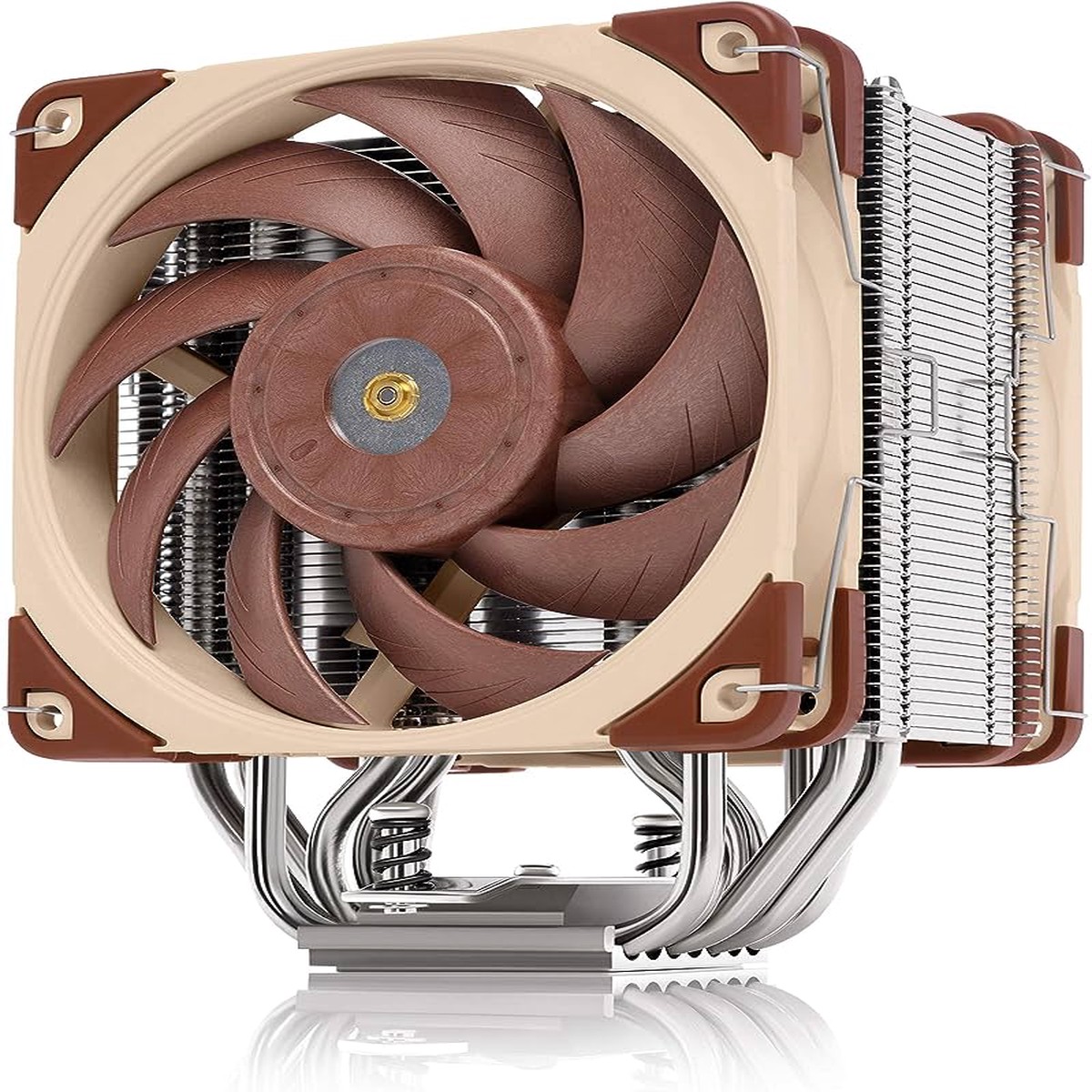

Cooler Specification

Socket compatibilityIntel LGA1700 (includedsince Q4 2021, older coolers requireNM-i17xx-MP78),LGA1200, LGA1156, LGA1155, LGA1151, LGA1150, LGA2066, LGA2011 & AMD AM4, AM5
Height (without fan)158 mmWidth (without fan)125 mmDepth (without fan)58 mmWeight (without fan)760 g
Height (with fan)158 mmWidth (with fan)125 mmDepth (with fan)112 mmWeight (with fan)1220 g
MaterialCopper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
NSPR169Max. TDPseeNSPR
Fan compatibility120x120x25
Scope of delivery

• 2x NF-A12x25 PWM 120mm fan
• 2x Low-Noise Adaptor (L.N.A)
• 4-pin PWM y-cable
• SecuFirm2 mounting system for Intel and AMD
• NT-H1 thermal compound
• Noctua Metal Case-Badge

Warranty6 Years
FAN SpecificationModelNoctua NF-A12x25 PWMBearingSSO2Max. rotational speed (+/- 10%)2000 RPMMax. rotational speed with L.N.A. (+/- 10%)1700 RPMMin. rotational speed @ 20% PWM (+/-20%)450 RPMMax. airflow102,1m/hMax. airflow with L.N.A.84,5m/hMax. acoustical noise22,6 dB(A)Max. acoustical noise with L.N.A.18,8 dB(A)Voltage range12 VMTTF> 150.000 h
