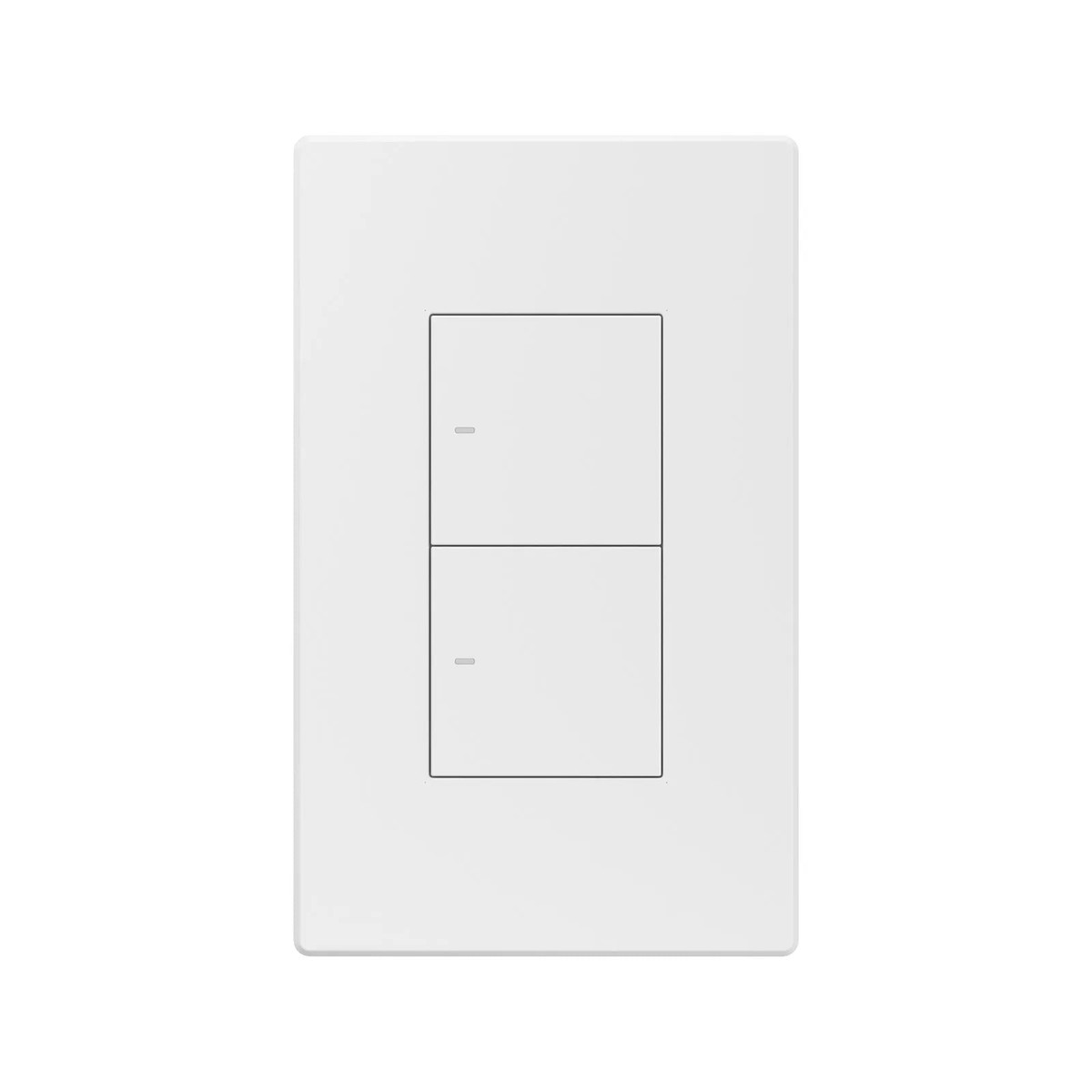

Sonoff M5 Matter and Wifi Smart Wall Switch 2CH

The Sonoff M5 Matter Smart Wall Switch 2CH series offers a sophisticated solution for modern home automation. Designed with Matter compatibility, these switches effortlessly integrate into Matter-enabled ecosystems such as Alexa, Google Home, and Apple Home, providing a unified control experience across multiple devices and brands.

One standout feature is its seamless compatibility with Apple Home, facilitated through Matter integration. This allows users to control M5 Matter switches directly within the Apple Home App and create automation scenarios with devices from various manufacturers, enhancing the overall smart home experience.

The switches are equipped with eWeLink-Remote control functionality, acting as a gateway for Scene Controller R5. This enables two-way or multi-way control of lights or appliances without the need for complex wiring, making it easy to implement and manage advanced lighting setups.

For local control, the M5 Matter switches feature high-precision physical buttons, ensuring reliable operation and ease of use for anyone in the household. Additionally, safety is paramount with separate high and low voltage design, allowing for safe disassembly when needed.

The switches are crafted from high-grade PC V0 CRS materials, ensuring high-temperature resistance and excellent flame-retardance. Their compact design and white color blend seamlessly with modern interiors, providing both functionality and aesthetic appeal.

**Please Note: For 2 Way Switching, please use Smart Secens and do not connect any physical Cable Between the 2 switches.**

**Requires a Neutral Wire**

**Requires an installer**

**Please Note: Any Switches Returned due to not having Neutrals non-recoverable feeswill apply. These fees cover shipping, Payfast charges, and a20% handling fee(with a minimum of R95).

Specifications

• Model: M5-1C-120W, M5-2C-120W, M5-3C-120W
• MCU: ESP32
• Rating:
  • 1C: 100-240V ~ 50/60Hz 10A Max
  • 2C: 100-240V ~ 50/60Hz 5A/Gang 10A Total Max
  • 3C: 100-240V ~ 50/60Hz 2A/Gang 6A Total Max
• Load:
  • 1C: 2200W
  • 2C: 2200W (1-1100W/Gang)
  • 3C: 1320W (1-440W/Gang)
• LED Load:
  • 1C: 300W/220V, 150W/110V
  • 2C: 300W/220V/Gang, 150W/110V/Gang
  • 3C: 100W/220V/Gang, 60W/110V/Gang
• Wireless Connectivity: IEEE 802.11 b/g/n 2.4GHz
• Net Weight: 1C (177.5g), 2C (184g), 3C (186g)
• Dimension: 120x74x41.5mm
• Color: White
• Casing Material: PC V0 CRS
• Applicable Place: Indoor
• Working Temperature: -10C~40C
• Working Humidity: 5%~95% RH, non-condensing
• Certified Compliance: CE/FCC/ISED/RoHS
• Executive Standard: EN 60669-2-1
